Sabra NLZ E S120 (With Endodontic Function) Electric Handpiece Control Unit, Complete
Description
Features

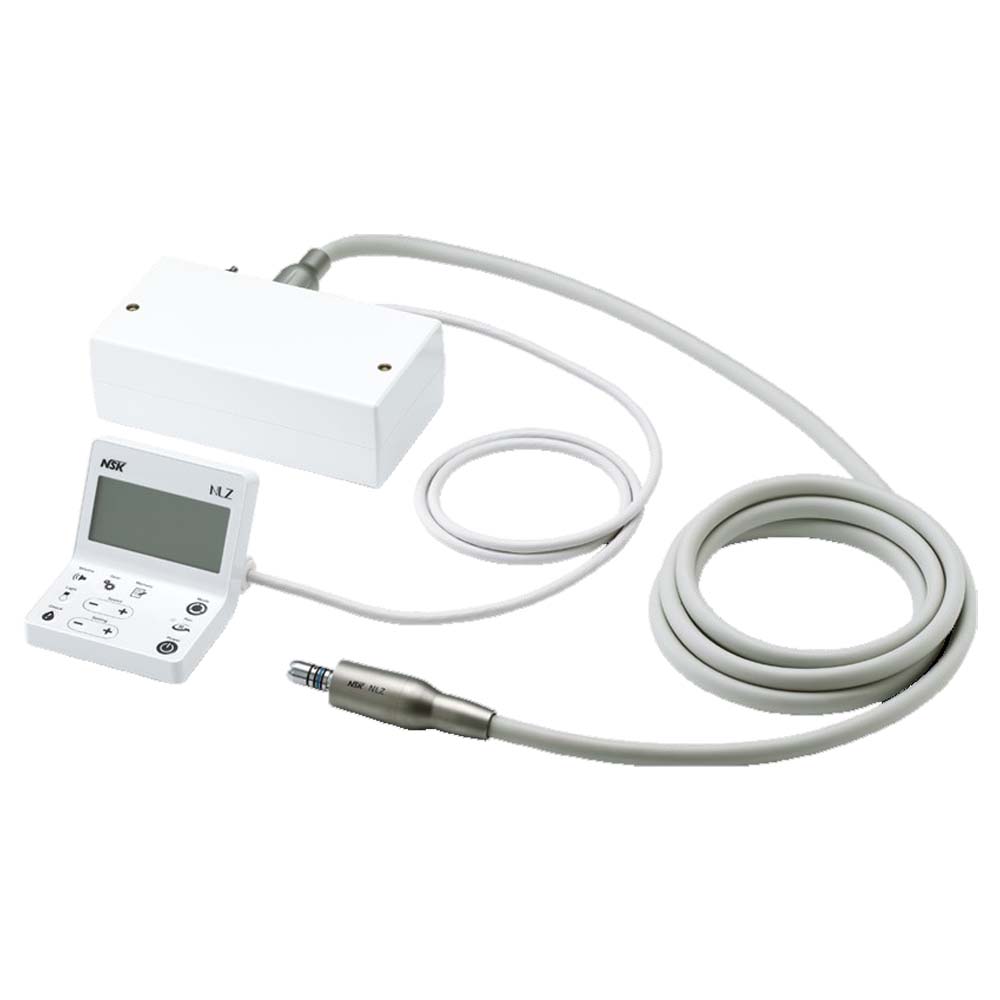

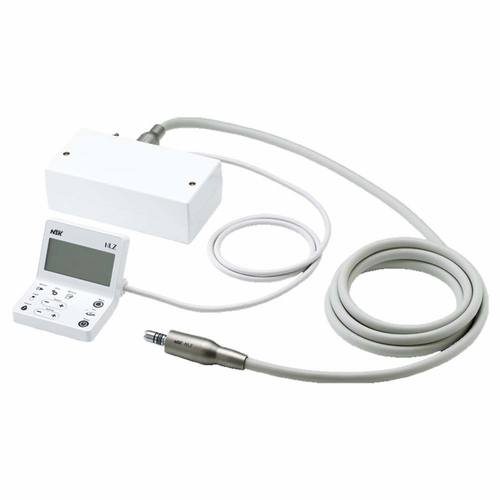

NLZ S120 Electric Handpiece Control Unit, Complete
Powerful - The conventional magnet rotor has been replaced with an improved magnet rotor. More powerful rotation is achieved in the same amount of space by reducing weak magnetic areas.
Efficient - In this unique technology, the water and air lines that used to bypass the motor have now been integrated with the motor. This new, more efficient configuration makes maximum use of the limited space and is lighter and more powerful than before.
Less Heat - NLZ employs a simple non-layered coil instead of a standard layered coil. The coils are as compact as possible, shortening the pathway for heat generating current. As a result it generates less heat without reducing the output power.
Simplified Pipe Configuration - Conventional products include several pipes, which crank the water flow supplied from the rear of the motor. The NLZ uses a simple straight pipe design instead of a crank, reducing the risk of water clogging in the rear section of the motor.
Contaminants Are Stopped by a Microfilter - There is a water filter with 0.3 mm diameter mesh fitted within the tubing connector at the back of the main unit to catch debris and foreign particles in the water and prevent clogging.
Endo Torque Calibration Function (NLZ E Only) - Performing the “Contra-Check Function” also enables torque calibration. This function measures the no-load current values and corrects the torque accordingly, resulting in greatly enhanced safety in endodontic treatment.*This function cannot completely absorb the individual difference of the actual motor and contra-angles.
- Powerful Performance: Improved magnet rotor technology delivers more powerful rotation within the same compact space.
- Efficient Design: Integrated water and air lines maximize available space while providing a lighter and more powerful configuration.
- Reduced Heat Generation: A compact non-layered coil shortens the current pathway, helping reduce heat without compromising output power.
- Simplified Pipe Configuration: Straight pipe routing improves water flow and reduces the risk of clogging in the rear section of the motor.
- Built-In Microfilter: A 0.3 mm mesh water filter helps capture debris and foreign particles to prevent clogging.
- Enhanced Endodontic Safety: The NLZ E model features torque calibration that adjusts torque based on measured no-load current values.
- Compact & Practical Construction: Efficient internal component placement combines power, reduced heat, and reliable water and air flow in a compact motor design.
