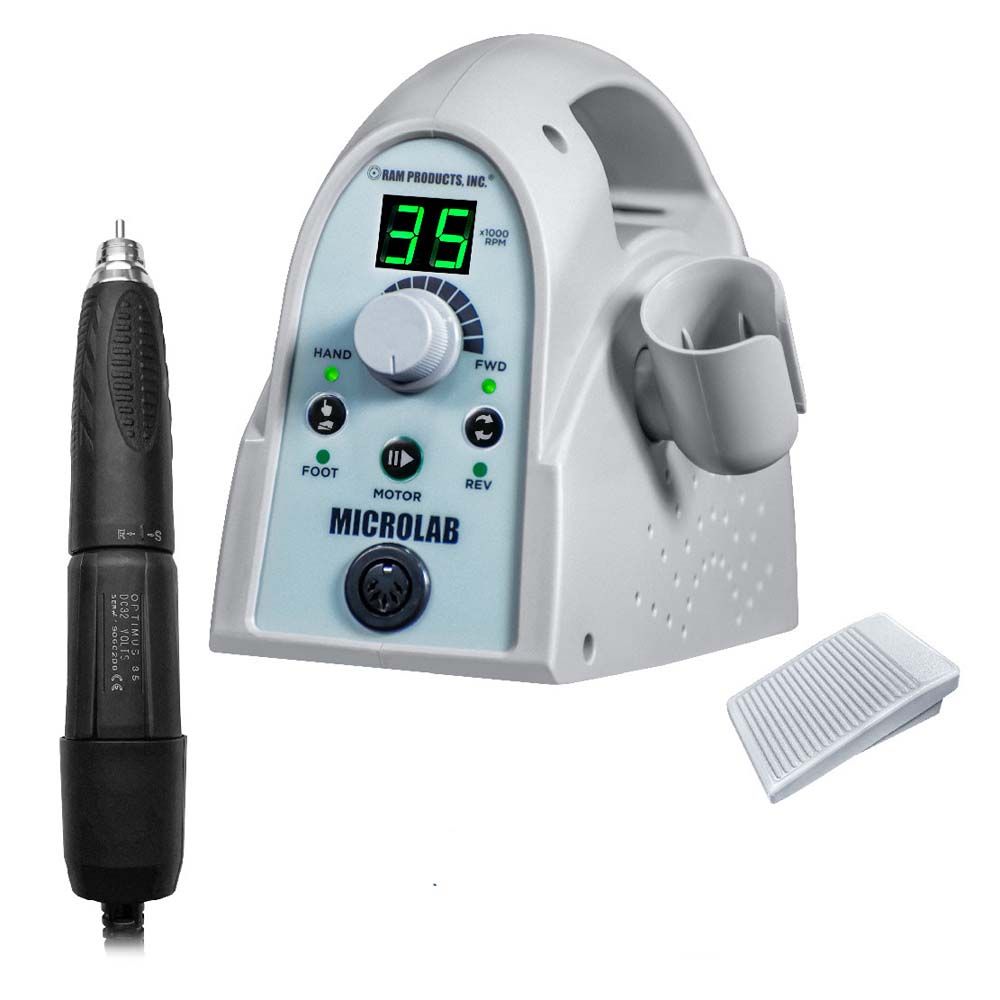

Microlab 350 Box, Optimus 35 Handpiece & On/Off Pedal

Microlab now features upgraded electronics with precise digital speed control, soft start and stop technology, audible sounds and convenient standby mode. It is full of features unique to Ram at a fraction of the price of its competitors. Superior safety overload and protection along with a convenient right-side handpiece holder and built-in handle to carry.

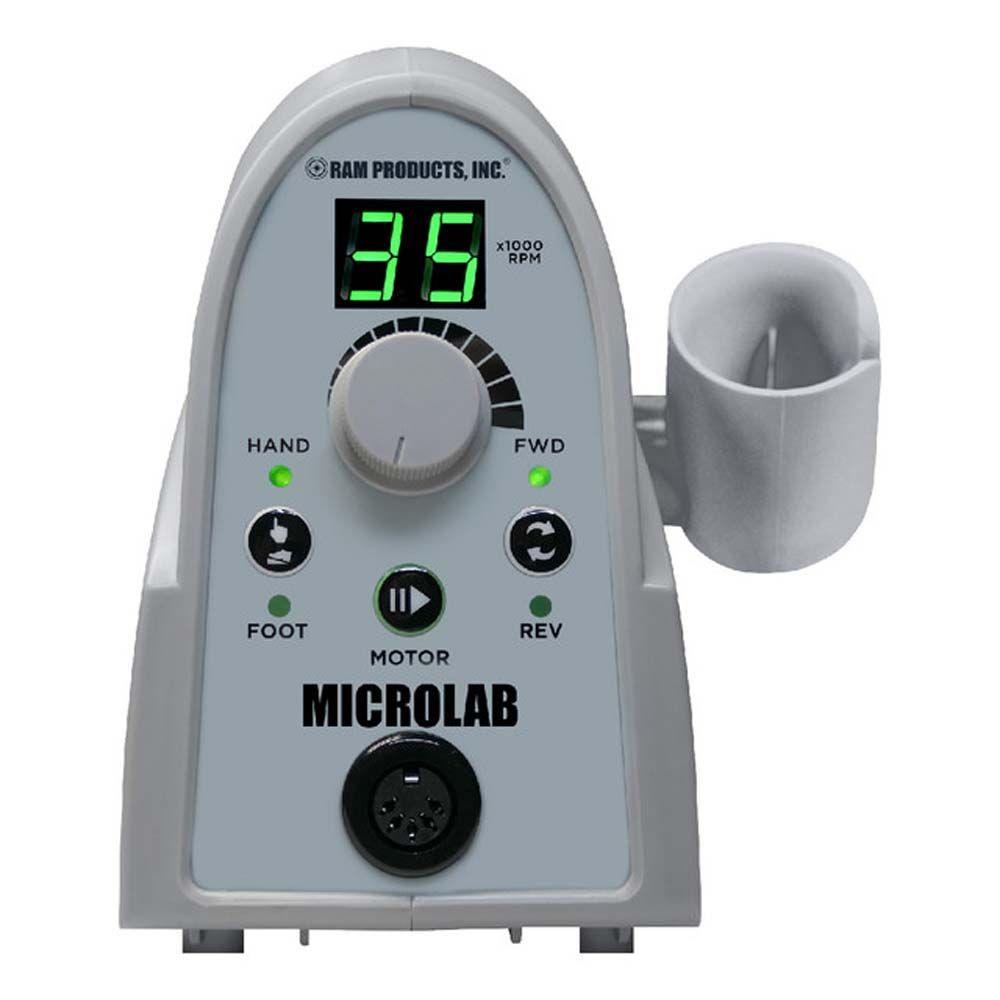

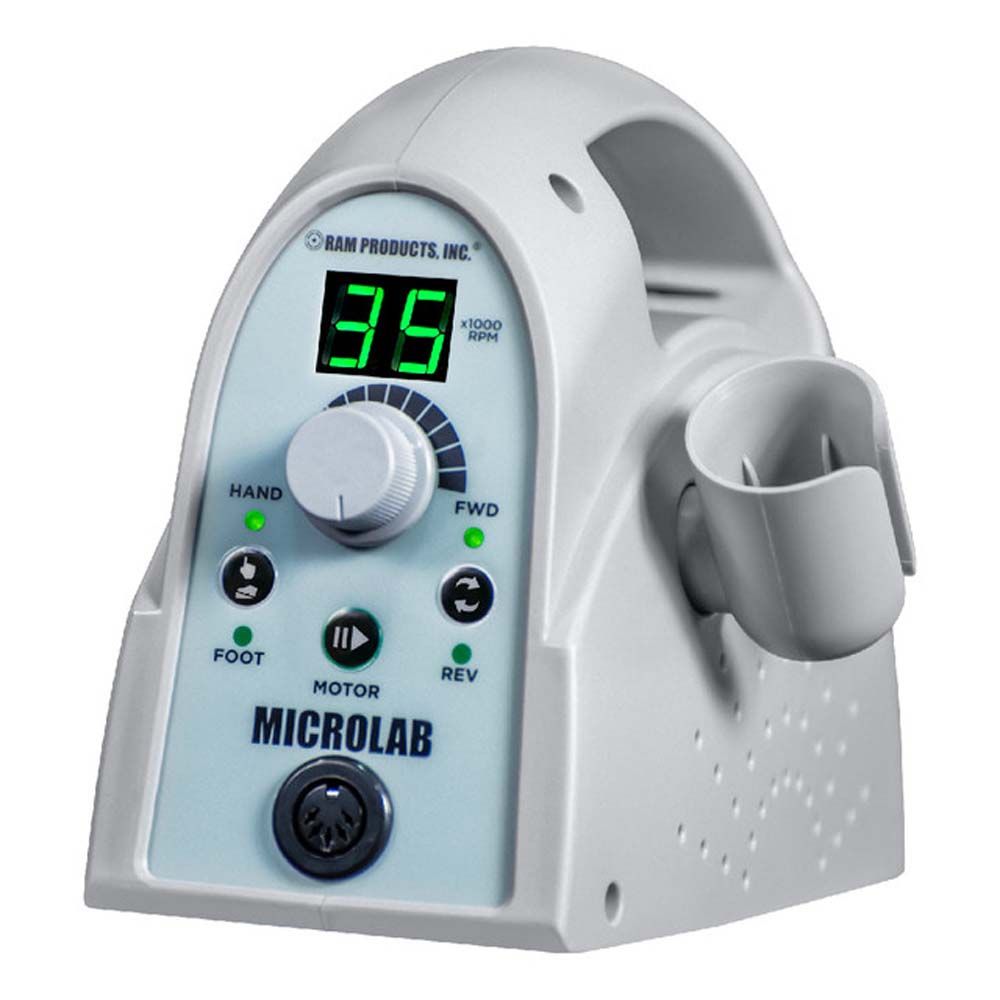

MICROLAB 350 CONTROL BOX FEATURES:

• 0–35,000 RPM
• LED Functions and Display
• Hand or Foot Control
• Standby Mode for Handpiece Motor
• Forward or Reverse Rotation
• Speed Dial Can Limit Top Speed for Safety
• High Torque
• High Power with Feedback
• Microprocessor Control
• Stylish and Ergonomic
• Touch Panel Buttons for Durability
• Safety Overload Protection

MICROLAB 350 CONTROL BOX SPECIFICATIONS:

• Input: AC110V/230V 50HZ–60HZ
• Output: DC 0–32V
• Max Amp: 2A
• Rotate Speed: 0–35,000 RPM
• Power: 60W
• Dimension: 8” Length x 4” Width x 6” Height
• Weight: 4.4 lbs

OPTIMUS 35 HANDPIECE FEATURES:

• 35,000 RPM
• Twist Type Release
• Increased Performance High Speed Spindle
• Heavy Duty Front Grease Sealed Ball Bearings
• Optional Chuck Sizes: 1/8” or 3mm

• Includes 6 Foot Coiled Cord

OPTIMUS 35 HANDPIECE SPECIFICATIONS:

• Torque: 4.5 Ncm
• Size: 6.2” x 1.2”
• Net Weight: 9.2 oz.

ON/OFF FOOT PEDAL FEATURES:

• This foot pedal accessory will allow the user to turn the handpiece on/off as set

ON/OFF FOOT PEDAL SPECIFICATIONS:

• 4” Length x 2 1/2” Width x 11/4” Height
