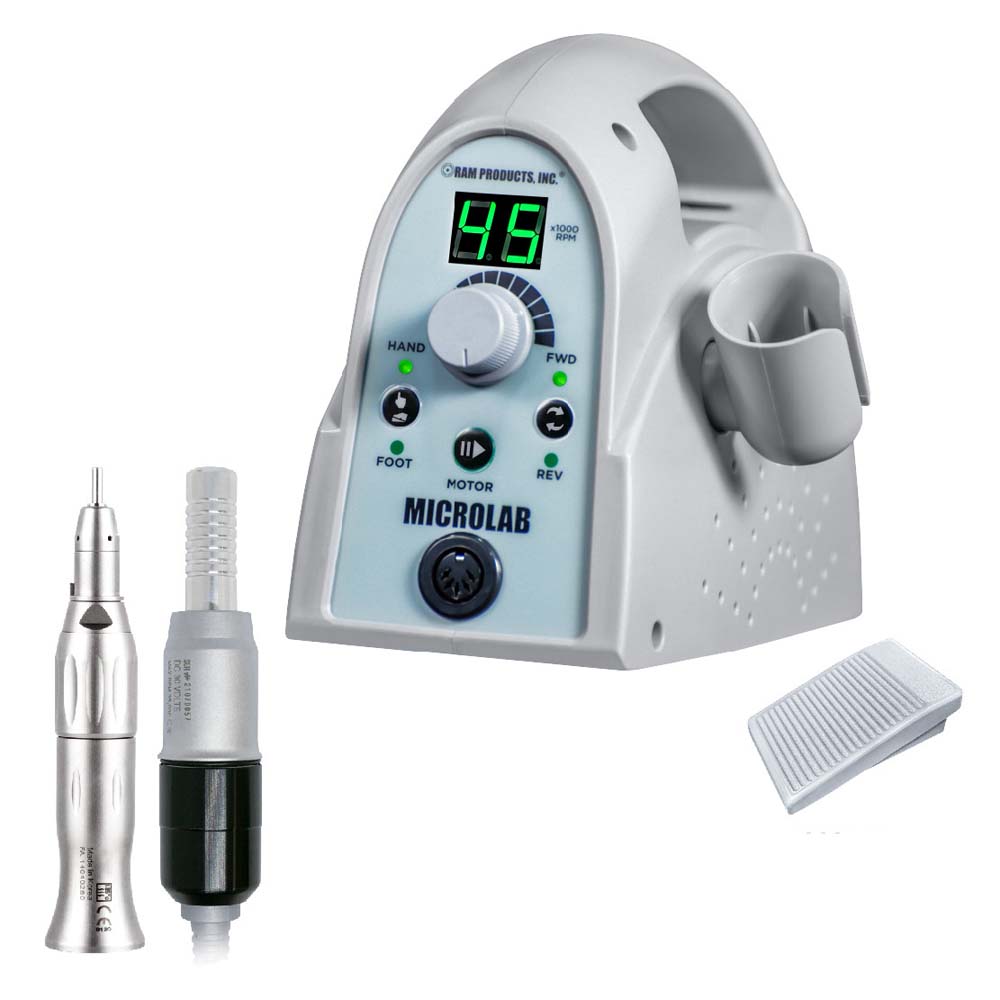

Microlab now features upgraded electronics with precise digital speed control, soft start and stop technology, audible sounds and convenient standby mode. It is full of features unique to Ram at a fraction of the price of its competitors. Superior safety overload and protection along with a convenient right-side handpiece holder and built-in handle to carry.

E-Type provides versatility and autoclavability. Versatility to attach a variety of slow speed attachments for both straight laboratory burs and disposable prophy angles. Angle attachments 1:1 for latch burs, FG burs, or prophy cups. In addition, E-Type is an industry standard and other attachments with gear decrease for prophy, or gear increase for clinical use, and specialty such as oscillating, reciprocating and sawing.

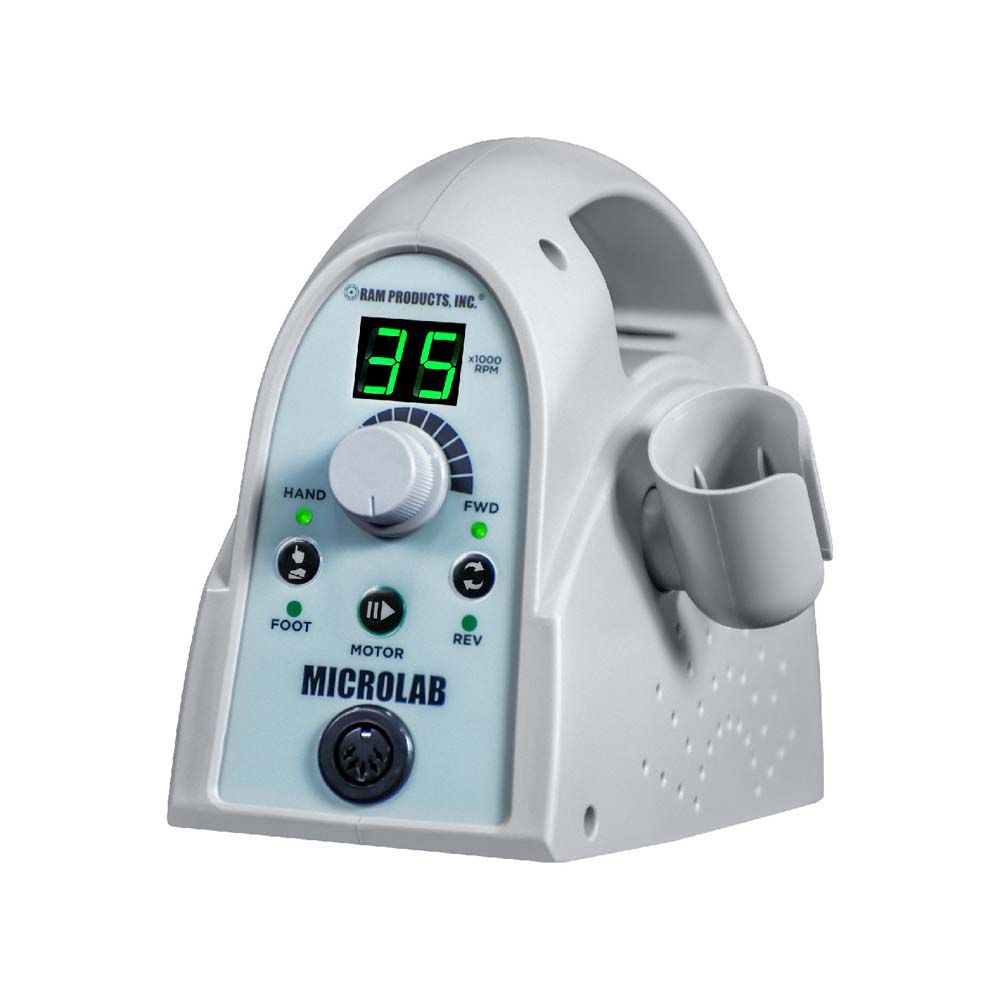

MICROLAB 350 CONTROL BOX FEATURES:

• 0–35,000 RPM or 0–45,000 RPM
• LED Functions and Display
• Hand or Foot Control
• Standby Mode for Handpiece Motor
• Forward or Reverse Rotation
• Speed Dial Can Limit Top Speed for Safety
• High Torque
• High Power with Feedback
• Microprocessor Control
• Stylish and Ergonomic
• Touch Panel Buttons for Durability
• Safety Overload Protection

MICROLAB 350 CONTROL BOX SPECIFICATIONS:

• Input: AC110V/230V 50Hz–60Hz
• Output: DC 0–32V
• Max Amp: 2A
• Rotate Speed: 0–35,000 RPM or 0–45,000 RPM
• Power: 60W
• Dimensions: 8" Length x 4" Width x 6" Height
• Weight: 4.4 lbs

VENTED E-TYPE MOTOR HANDPIECE FEATURES:

• 0–35,000 RPM
• 3 Pin Coiled Cord
• Ventilation for Cooler Operation
• Accepts Various Angles and Attachments

VENTED E-TYPE MOTOR HANDPIECE SPECIFICATIONS:

• Torque: 2.7 Ncm
• Size: 4.35” x 1”
• Net Weight: 5.5 oz

SEALED E-TYPE MOTOR HANDPIECE FEATURES:

• 0–35,000 RPM
• 3 Pin Straight Autoclavable Silicone Cord
• Sealed for Autoclave (134°C)

SEALED E-TYPE MOTOR HANDPIECE SPECIFICATIONS:

• Torque: 2.7 Ncm
• Size: 4.35” x 1”
• Net Weight: 5.5 oz

This is ONLY for short time use of 1-3 minutes since no fan cooling but does allow for autoclaving

STRAIGHT NOSE CONE HANDPIECE FEATURES:

• 35,000 RPM
• Metal Twist
• Autoclavable Material and Prevention of Slipperiness
• Easy for Lubrication with Open Shield Bearings
• Ergonomic Design

STRAIGHT NOSE CONE HANDPIECE SPECIFICATIONS:

• Size: 3.4” x 0.8”
• Net Weight: 2.84 oz

ON/OFF FOOT PEDAL FEATURES:

• This foot pedal accessory will allow the user to turn the handpiece on/off as set

ON/OFF FOOT PEDAL SPECIFICATIONS:

• 4” Length x 2 1/2” Width x 11/4” Height
